Choosing an Anti-Drone Net should begin with the application requirements rather than only the mesh size or material. A temporary panel for an opening, a canopy installed above equipment, and a shelter designed for a high-value asset all have different installation requirements and operating conditions.
Before selecting a system, it is important to understand the expected drone threat, protection area, installation space, support structure, and how the site will continue normal operations after installation.
Mesh size and material are only part of the specification. The complete design should also include the net structure, mounting method, and site requirements.
When selecting an Anti-Drone Net, consider the following points:
Identify the type of drone threat and the assets that need protection.
Understand possible approach directions and the area that requires coverage.
Choose the right protection design, whether it is intended to capture, block, redirect, or provide additional protection layers.
Select suitable materials, mesh size, and construction based on strength and site conditions.
Consider the net, edges, connectors, supports, and stand-off distance as one complete system.
Check installation requirements, including access, fire safety, electrical clearance, drainage, and maintenance.
Review available testing information and define inspection and replacement requirements before deployment.
Record the credible drone types, rotor exposure, dimensions, mass, likely speed, approach angle, guidance method, payload consequences, single or multiple arrival, and operating environment. Avoid asking for a net that “stops drones” without stating which drones and under what conditions. The anti-drone net category contains different physical concepts; the correct configuration depends on the threat model.
Decide whether the risk is an open doorway, a street-like approach, a roof plant area, a vehicle bay, a perimeter sector, or a compact asset needing top and side coverage. Map corners, slopes, cable routes, drains, vents, doors, crane paths, roof edges, and temporary openings. A strong panel is ineffective when the aircraft can bypass it. Coverage should be reviewed whenever the site layout or operating process changes.

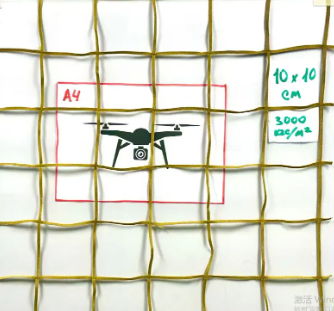

Aperture affects rotor interaction, probability of passage, weight, visibility, airflow, and wind loading. Smaller is not automatically stronger; strength also depends on yarn or tape, construction, joints, edges, and supports. Ultra Safe lists an aramid interception system with a 5 × 5 cm mesh, while its table also describes other aramid yarn and tape configurations. Treat each as a separate design option requiring matched evidence.
Factor | What to verify | Common mistake |
|---|---|---|
Tensile and breaking behavior | Applicable method, sample construction, conditioning, direction, and variability. | Using a single yarn value as proof of complete-net performance. |
Energy and elongation behavior | How the assembled net deforms and transfers load. | Assuming maximum stiffness is always desirable. |
Edges and seams | Reinforcement, joints, repair method, and connector compatibility. | Specifying the net body but ignoring its weakest boundary. |
Environment | UV, moisture, temperature, abrasion, chemicals, salt, sand, fire behavior, and expected service life. | Using indoor or generic data for an exposed site. |
Traceability | Material batch, dimensions, inspection records, and supplied configuration. | Accepting a certificate that does not identify the delivered item. |
The net, border, connectors, frames, guy lines, foundations, and existing building structure form one load path. Calculate impact and environmental actions and verify combined load cases. Tension must match the intended mechanism: flexible hanging mesh may promote entanglement, while a tensioned barrier may control passage and deflection. Stand-off must remain adequate at maximum credible deformation. Also define a safe area for a stopped aircraft and its battery or payload.
Temporary hanging panel: prioritizes low mass and quick handling, but attachment consistency and limited stand-off are concerns.
Modular framed barrier: offers repeatable geometry and replaceable panels, but needs anchorage and transport planning.
Tensioned canopy: covers selected equipment, but wind, drainage, access, and side gaps require careful design.
Enclosed shelter: provides several approach barriers, but can affect ventilation, fire response, visibility, maintenance, and escape.
Multi-layer system: can separate concealment, interception, and consequence mitigation, but each layer and interface needs verification.
Ultra Safe's three-layer protection system uses multispectral camouflage netting, aramid interception netting, and a bomb-blanket layer. Buyers should assess whether all three functions are needed and whether the complete assembly fits the site's access and support constraints.
Ask what was tested, by whom, using which method, sample size, conditioning, impact geometry, support configuration, panel dimensions, edge design, connectors, tension, stand-off, drone surrogate or target, speed, angle, number of impacts, pass criteria, and post-test damage. Component tensile data are useful but do not substitute for representative system testing. If configuration changes, determine whether the evidence still applies.
Confirm gates, retractable sections, inspection access, emergency release, evacuation, fire-service routes, authorized aircraft, cleaning, drainage, vegetation, snow and ice removal, spare panels, specialist tools, training, and storage. Lifecycle cost includes survey, engineering, foundations, installation, periodic inspection, storm damage, repairs, replacements, downtime, and eventual disposal—not just price per square meter.
Documented threat envelope and required performance outcome.
Coverage drawing with openings, side gaps, overhead routes, and stand-off.
Material, mesh, panel, edge, seam, connector, support, and foundation specifications.
Environmental and fire-performance requirements for the target site.
Representative test evidence with explicit limits.
Installation method, tension criteria, acceptance inspection, and as-built records.
Routine, post-weather, and post-impact inspection plan.
Repair limits, spare parts, replacement triggers, warranty, and traceability.
Compliance review covering end use, export, site law, worker safety, and incident handling.
The right Anti-Drone Net is the configuration whose threat envelope, load path, coverage, stand-off, access, environment, test evidence, and maintenance plan fit the real site. Mesh size cannot be selected in isolation, and material strength cannot compensate for weak edges or supports. Jiangsu Ultra Safe New Material Co., Ltd. offers an aramid interception net and a layered shelter configuration. Buyers should convert those product options into a site-specific specification and accept the system only against defined evidence and inspection criteria.
The right mesh size depends on the drone type, rotor size, and the protection purpose. A smaller opening is not always the best choice, as it can also affect weight, wind resistance, and installation requirements.
Yes. Aramid is widely used where high strength and low weight are required. However, the final performance depends on the complete net system, including the weave, edge design, connectors, and installation method.
It depends on the application. Some systems use flexible netting to help capture drones, while others use controlled tension to improve stability and impact control.
Buyers should ask for product specifications, material information, installation instructions, test records, and maintenance requirements. Project-specific information is also important for confirming whether the system matches the intended application.
Replacement depends on the actual condition of the net. Factors such as weather exposure, wear, chemical contact, impact, repairs, and changes in tension should be checked during regular inspections.
