In-Conjunction-With (ICW) Body Armor Explained: How the Ultra-safe Soft-Core and Hard-Plate System Defeats 7.62x51mm NATO

On the modern battlefield, stopping a rifle round is only half the mission. The other half is protecting the operator from the violent blunt-force trauma that a defeated round transfers into the body. At Ultra-safe, we engineer complete protective systems, not isolated components. This report breaks down the science of In-Conjunction-With (ICW) armor and shares live ballistic test data proving how our integrated soft-core and hard-plate system defeats full-power 7.62x51mm NATO rifle threats with minimal backface deformation.

What Is In-Conjunction-With (ICW) Armor?

Hard armor plates fall into two fundamental architectures. Understanding the difference is critical for any procurement officer building a duty loadout, because the wrong choice can leave an operator dangerously exposed or unnecessarily overweighted.

Standalone Plates

A standalone plate is engineered to defeat its rated threat entirely on its own, with no reliance on any additional layer behind it. Standalone plates are convenient but tend to be thicker and heavier because every joule of impact energy must be absorbed by the rigid strike face and its own backing structure.

In-Conjunction-With (ICW) Plates

An ICW plate is designed to reach its full rated protection level only when worn together with a dedicated soft armor backer. This is the true meaning of the Chinese industry term cooperative defense. The rigid plate shatters and captures the incoming projectile, while the soft ballistic core positioned behind it manages the residual energy. The result is a lighter, thinner, and more comfortable system that delivers elite protection as a unified package.

Why the Soft Core Matters: Defeating Backface Deformation

When a rifle round strikes a hard plate, the plate stops the bullet but the energy does not simply disappear. It pushes the rear face of the armor violently inward toward the wearer. This inward bulge is called Backface Signature (BFS) or backface deformation, and it is the direct cause of behind-armor blunt trauma, which can crack ribs, rupture organs, and incapacitate an operator even when the round never penetrates. The Ultra-safe soft ballistic core acts as an energy-dispersing cushion, dramatically flattening this deformation and turning a potentially disabling strike into a survivable, fight-through event.

The Ultra-safe ICW System Under Fire: Live Ballistic Testing

To validate our engineering, two complete Ultra-safe ICW configurations were submitted to an independent ballistic material testing center for live-fire evaluation under the internationally recognized NIJ 0101.06 protocol.

Test Parameters

Sample Configuration

Each sample represents a complete ICW system: one rigid insert plate paired with its dedicated soft ballistic core.

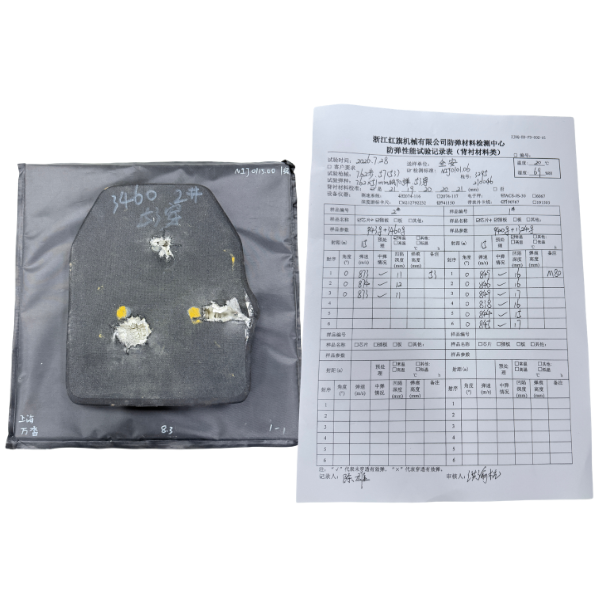

Test Results: Zero Penetration Across Every Round

Both configurations achieved a complete stop on every single shot. In the official record, the check mark denotes a non-penetrating effective hit. Neither system recorded a single penetration.

Sample 1# Results (Six-Shot Multi-Hit Sequence)

Average impact velocity: 847 m/s. Average backface signature: 16.2 mm. Six consecutive full-power NATO rounds defeated with zero degradation in performance.

Sample 2# Results (High-Velocity Three-Shot Sequence)

Average impact velocity: 873 m/s. Average backface signature: 11.3 mm. This configuration was engaged at velocities well above the standard M80 reference, yet still delivered the lowest deformation of the entire test.

Interpreting the Backface Signature

The NIJ 0101.06 standard permits a maximum backface deformation of 44 mm. Any result below this threshold is a pass, and the lower the number, the less trauma transferred to the wearer. The Ultra-safe ICW system did not merely pass; it dominated.

Why This Matters for the End User

Raw stopping power is expected. What separates a professional-grade system from a commodity plate is what happens to the human body behind the armor.

• Proven Multi-Hit Capability: Sample 1# absorbed six consecutive rifle rounds without failure, ensuring the operator remains protected through a sustained engagement, not just the first shot.

• Drastically Reduced Blunt Trauma: With backface deformation as low as 11 mm, the wearer is far more likely to stay conscious, mobile, and combat-effective after being hit.

• Optimized Weight-to-Protection Ratio: By engineering the plate to work in conjunction with the soft core, the complete rifle-rated system weighs as little as 2.4 kg per position, reducing operator fatigue over extended missions.

The Ultra-safe Engineering Advantage

Every Ultra-safe ICW system is the product of precision material science. The rigid insert is tuned to fracture and trap the projectile core, while the dedicated soft ballistic backer is layered to disperse residual energy across the widest possible area. This is not an accessory pairing; it is a co-engineered defensive platform validated by live fire. When the mission demands verified rifle protection with elite trauma management, Ultra-safe delivers a system you can trust with your operators lives.

Technical Summary

Conclusion

The In-Conjunction-With philosophy is not a compromise; it is the smartest path to a lighter, safer, and more survivable armor system. The independent test data speaks for itself: nine full-power NATO rifle rounds stopped, zero penetrations, and backface trauma reduced to a fraction of the international safety limit. This is the standard of protection Ultra-safe builds into every system we ship.

Ultra-safe: Where Elite Protection Meets Uncompromising Quality.

Explore our full range of ballistic protection systems at www.ultra-safety.com.
